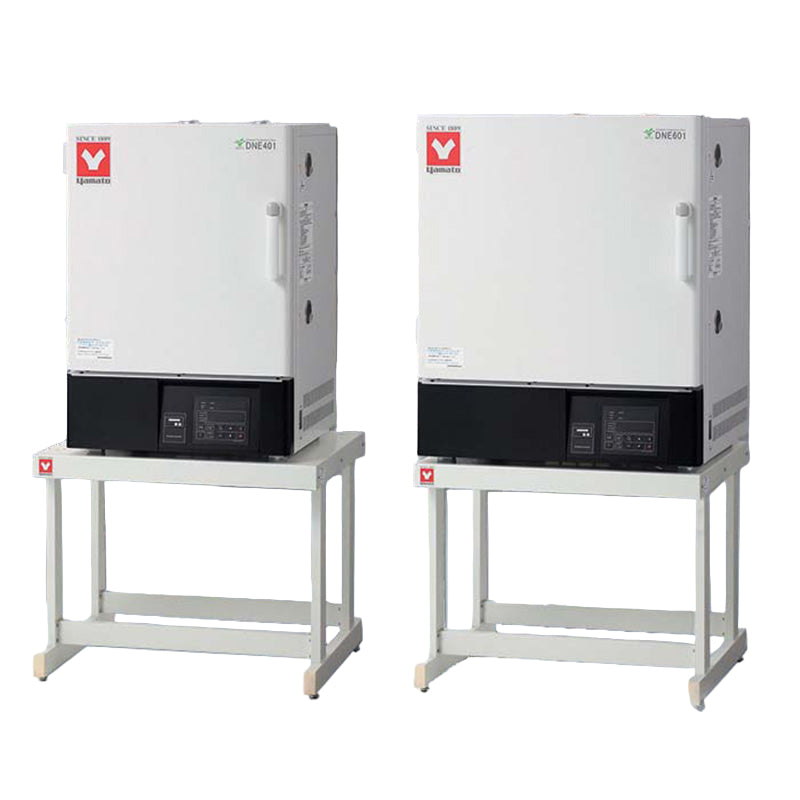

Yamato DNE Series Energy Saving Programmable Forced Convection Lab Oven

Yamato DNE Series Energy Saving Programmable Forced Convection Lab Oven

by Lab Stock Direct
$5,030.00
Model, Size and Voltage

Notify me when back in stock

Description

High performance environment friendly eco-oven that reduces power consumption significantly

Operation and functions

High precision controller allows high performance temperature control and display of CO₂ and power discharge

Heat tightness and insulation design of the chamber achieves an energy saving rate of about 40% at constant temperature compared to previous models

Maximum temperature reaching time reduced by 15 minutes (no-load) compared to previous models

Program operation with a maximum of 99 steps, 99 patterns repeatable

Standard equipped with various support functions such as calibration offset, power failure recovery mode, save and access of user setting information, as well as other operation modes

Data acquisition from internal test device possible because of cable holes

Easy system upgrade with various option settings

Safety features

Standard equipped with various self-diagnostic functions such as independent overheat prevention device, overcurrent circuit breaker, and key lock function

Click here for Yamato Lab Oven Accessories

Technical Specs
Model DNE401
DNE411		 DNE601
DNE611		 DNE811 DNE911
Circulation method Forced air circulation
External temp. range 5~35°C
Operating temp. range RT+20°C to 210°C
 RT+15°C to 210°C
Temp. control accuracy*¹ ±0.5°C (at 210°C)
Temp. distribution accuracy*¹ ±2.0°C (at 210°C)
Temp. gradient*¹ 6°C (at 210°C) 8°C (at 210°C) 8°C (at 210°C) 10°C (at 210°C)
Temp. rise time*¹ ~60 min. ~70 min.
 ~45 min. ~60 min.
Chamber / Exterior / Insulation Stainless steel / Chrome-free electro-galvanized steel plate, chemical-proof baked-on finish / Glass wool
Door Single swing (left side) Double doors (from center)
Heater / insulating material Stainless pipe heater / Glass wool
1.1kW 1.2kW
 1.2kW x 2 1.5kW x 2
Fan Type Scirocco fan, Capacitor motor
Fan Motor 10W 30W 30Wx2
Cable hole (right side) 33mm I.D. 1pc.
Exhaust port 33mm I.D. 2pcs. (top)
 33mm I.D. 2pcs. (rear)
Observation window Optional ---
Temp. controller PID Z control by microprocessor
Temp. setting method Digital setting by ▲/▼ key
Temp. / Info display Green 4 digit LED digital display (top screen) and orange 5 digit LED digital display (bottom screen) (1°C resolution)
Timer 1 min. and 99 Hrs. 59 mins: duration operation, 24 hour setting: time operation
Operation function Fixed temperature, Program operation (max.99 steps, up to 99 patterns repeat operationing function), Duration/time select timer operation
function (fixed temperature operation, auto-start, auto-stop, quick auto stop, program operation auto start)
Additional functions Power on and Integration time function (up to 65,535 hours), Calibration offset, Time display, Display of power consumption, CO2 discharge and
heater operation, Power failure return mode, User configuration information
Heater circuit control Triac zero-cross control
Sensor K-thermocouple double sensor (for temperature control and independent overheat prevention device)
Safety device Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Main relay abnormal, Automatic overheating prevention), Key lock function, Independent overheat prevention, Electric leakage breaker with over current protection
Earth leakage breaker Leak Current/Short Circuit/Over-current Protection, Rated Current Sensitivity 30mA
Independent overheat prevention Set temperature range: 0~250°C
Internal dimensions*² W×D×H 450×450×450 mm 600×500×500 mm 600×500×1000 1090×500×1000
External dimensions*² W×D×H 580×646×860 mm 730×696×910 mm 730×695×1660 1220 ×695×1660
Internal capacity 90L 150L 300L 540L
Shelf plate with standard load ~15kg/pcs.
Shelf rest step number / Shelf rest pitch 11 steps / 30mm 13 steps / 30mm 29 steps / 30mm 29 steps / 30mm x 2
Power source 50/60Hz AC115V 10A (with plug)
AC220V 5.5A (no plug, round terminal)		 AC115V 11A (with plug)
AC220V 6A (no plug, round terminal)		 AC220V 11.5A (no plug, round terminal) AC220V 14A (no plug, round terminal)
Weight ~63kg ~77kg ~92kg ~185kg
Included accessories Shelf and brackets (stainless steel, 1 pc. on the bottom screwed)
Shelf plate / bracket 2 pcs. / 4 pcs. 4 pcs. / 8 pcs. 8 pcs. / 16 pcs.





*¹ Temperature Accuracy / Rise time Standard: Testing Machinery Association of Japan. Temperature Fluctuation/Gradient Standard: Japanese Industrial Standard
Performance data above based on 115V or 220V AC supplied power, 23°C±5°C (room temperature), 65%RH ±20% humidity, maximum air speed (FAN setting 10), damper closed, and no process load.
*² Protrusions excluded.

Accessories

Yamato Oven Accessories

Downloads

DNE Series Flyer

DNE Series info

Yamato Oven Accessories

Yamato Oven Buyers Guide

https://cdn.shopify.com/s/files/1/0658/7691/8466/files/Oven_Overview.pdf?v=1749342742
