Yamato SK-401-115V Dry Heat Sterilizer Natural Convection 99L 115V 260°C Max
Free Shipping · 7 Day Price Match Guarantee · Manufacturer Warranty · Call us (800) 577-0501
Yamato SK-401-115V Dry Heat Sterilizer Natural Convection 99 L 115 V
Contact us to confirm current lead times and real-time availability for this model.
Consult our Laboratory Autoclave & Sterilizer Guide to find the ideal sterilization solution for your research.

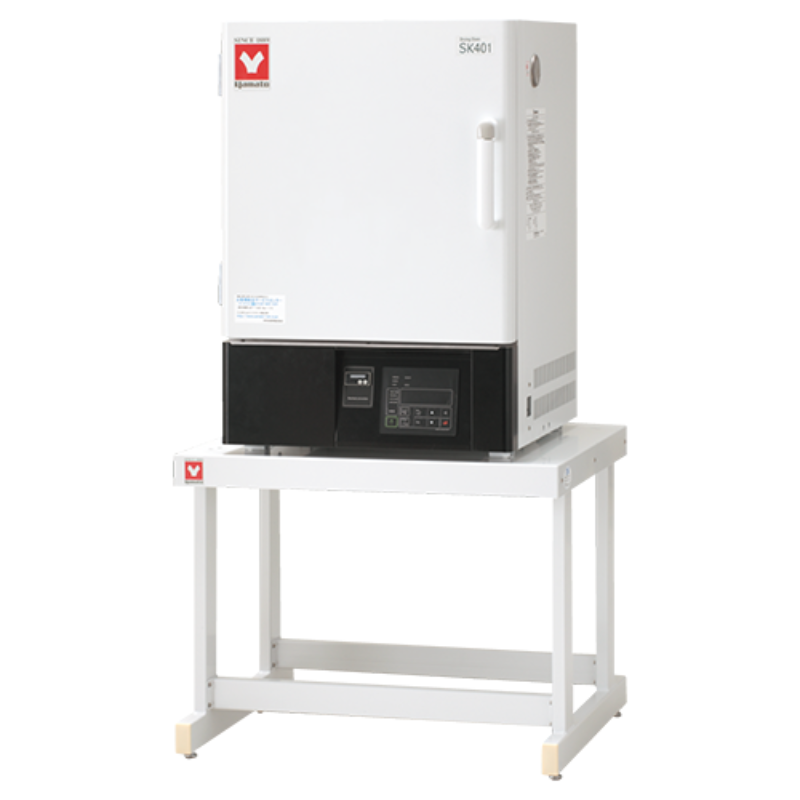

The Yamato SK-401-115V Dry Heat Sterilizer is a professional natural convection laboratory sterilizer designed for reliable dry-heat sterilization, drying, and heat treatment of glassware, instruments, and lab supplies. With a 99 L chamber, programmable PID control up to 260°C, and a comprehensive safety system including independent overheat prevention, the SK-401-115V delivers consistent performance for research, clinical, and industrial lab environments. Operates on standard US 115 V power.
Key Features:
- 99 L chamber: Compact-to-mid capacity ideal for routine glassware and instrument sterilization
- Natural convection: Gentle, even heat distribution ideal for heat-sensitive loads and standard sterilization protocols
- Temperature range: Room temp +5°C to 260°C with ±1°C control accuracy
- 99-step programmable control: Up to 99 patterns with repeat, auto start, auto stop, and quick auto stop functions
- PID microprocessor control: Dual LED display (green for actual temp, orange for set temp)
- Comprehensive safety system: Independent overheat prevention, self-diagnostics, earth leakage breaker, and key lock
- Energy monitoring: Tracks accumulated power consumption, CO₂ emissions, and heater output
Safety & Performance:
- Independent overheat prevention device
- Self-diagnostic functions (sensor failure, SSR short circuit, heater failure, relay contact failure)
- Earth leakage breaker
- Calibration offset function
- Power recovery mode
✓ Ships directly from Yamato USA in California
✓ Free shipping to the continental US (in stock items typically ship within 3-5 days)
✓ Includes Yamato's full 1-year manufacturer warranty
✓ 7-day price match guarantee from date of purchase
✓ Alaska, Hawaii, and international shipping available - contact us for rates
Ready to elevate your laboratory's sterilization capabilities with professional-grade precision? Order with confidence today.
Yamato SK-401-115V Dry Heat Sterilizer Natural Convection 99 L 115 V
Contact us to confirm current lead times and real-time availability for this model.
Consult our Laboratory Autoclave & Sterilizer Guide to find the ideal sterilization solution for your research.
The Yamato SK-401-115V Dry Heat Sterilizer is a professional natural convection laboratory sterilizer designed for reliable dry-heat sterilization, drying, and heat treatment of glassware, instruments, and lab supplies. With a 99 L chamber, programmable PID control up to 260°C, and a comprehensive safety system including independent overheat prevention, the SK-401-115V delivers consistent performance for research, clinical, and industrial lab environments. Operates on standard US 115 V power.
Key Features:
- 99 L chamber: Compact-to-mid capacity ideal for routine glassware and instrument sterilization
- Natural convection: Gentle, even heat distribution ideal for heat-sensitive loads and standard sterilization protocols
- Temperature range: Room temp +5°C to 260°C with ±1°C control accuracy
- 99-step programmable control: Up to 99 patterns with repeat, auto start, auto stop, and quick auto stop functions
- PID microprocessor control: Dual LED display (green for actual temp, orange for set temp)
- Comprehensive safety system: Independent overheat prevention, self-diagnostics, earth leakage breaker, and key lock
- Energy monitoring: Tracks accumulated power consumption, CO₂ emissions, and heater output
Safety & Performance:
- Independent overheat prevention device
- Self-diagnostic functions (sensor failure, SSR short circuit, heater failure, relay contact failure)
- Earth leakage breaker
- Calibration offset function
- Power recovery mode
✓ Ships directly from Yamato USA in California
✓ Free shipping to the continental US (in stock items typically ship within 3-5 days)
✓ Includes Yamato's full 1-year manufacturer warranty
✓ 7-day price match guarantee from date of purchase
✓ Alaska, Hawaii, and international shipping available - contact us for rates
Ready to elevate your laboratory's sterilization capabilities with professional-grade precision? Order with confidence today.
Technical Specs
| Model | SK401-115V / SK401-220V | SK601-115V / SK601-220V | SK801 | SK811 |
|---|---|---|---|---|
| Circulation method | Natural convection | Forced convection | ||
| Temp. setting range | Room temp. +5~260°C | Room temp. +5~260°C | Room temp. +10~210°C | |
| Temp. control accuracy | ±1°C (at 260°C) | ±1°C (at 260°C) | ±1°C (at 210°C) | |
| Temp. fluctuation | ±1.5°C (at 260°C) | ±1.5°C (at 260°C) | ±1°C (at 210°C) | |
| Temp. distribution accuracy | ±5°C (at 260°C) | ±5°C (at 260°C) | ±3.5°C (at 210°C) | |
| Temp. rising time | ~60 min. | |||
| Interior / Exterior material | Stainless Steel / Chrome-free electrogalvanized carbon steel sheet with chemical-proof baked-on finish | |||
| Insulation material | Glass wool | |||
| Heater | SUS 1.2kW | SUS 1.36kW | SUS 2.4kW | |
| Sensor | K type Thermocouple | |||
| Fan type / Motor | — | Sirocco Fan / Condenser type motor 30W | ||
| Cable port | I.D. 33mm (right side) | |||
| Exhaust port | I.D. 33mm × 2 (on top) | I.D. 33mm × 2 (back) | ||
| Temperature control | PID control by microprocessor | |||
| Temperature display | Green 4-digit LED (actual temp) / Orange 5-digit LED (set temp), increment: 1°C | |||
| Timer | 0 min ~ 99 hrs 59 min (increment: 1 min. or 1 hr.) | |||
| Heater control | Triac with Zero-cross control | |||
| Operation function | Fixed temperature, Auto start, Auto stop, Quick auto stop, Program (99 steps, 99 patterns, repeat operation) | |||
| Additional function | Power-on & operation time accumulation (up to 65,535 hrs), Calendar time (24 hr), Calibration offset, Accumulated power consumption monitoring, Total CO₂ emissions & heater output, Power recovery mode, Operator setting save/access, Key lock | |||
| Safety device | Self-diagnostics (sensor failure, SSR short circuit, heater failure, main relay contact failure, automatic overheat prevention), earth leakage breaker, independent overheat prevention device | |||
| Internal dimensions WxDxH | 450 x 490 x 450 mm | 600 x 540 x 500 mm | 600 x 500 x 1000 mm | |
| External dimensions WxDxH | 560 x 600 x 820 mm | 710 x 650 x 870 mm | 710 x 650 x 1640 mm | |
| Internal capacity | 99L | 162L | 300L | |
| Shelf plate max load | ~15 kg/pc | |||
| Shelf steps / pitch | 11 steps / 30mm | 13 steps / 30mm | 29 steps / 30mm | |
| Power source | 115V 11A (with plug) / 220V 6A (no plug, round terminal) | 115V 12.5A (with plug) / 220V 6.5A (no plug, round terminal) | 115V 21.5A (no plug) / 220V 11.5A (no plug, round terminal) | |
| Weight | ~50kg | ~62kg | ~108kg | |
| Included accessories | Shelf and brackets (stainless steel punched metal) 2 pcs. / 4 pcs. | Shelf and brackets (stainless steel punched metal) 2 pcs. / 4 pcs. | 4 pcs. / 8 pcs. | |
Applications
The Yamato SK-401-115V is a compact, dependable dry heat sterilizer suited for labs that need consistent sterilization performance without the footprint of larger units. Its 99 L chamber and natural convection heating make it a practical choice for benchtop and smaller-scale sterilization workflows.
Glassware Sterilization & Depyrogenation
Dry heat is the preferred method for sterilizing and depyrogenating borosilicate glassware — flasks, pipettes, petri dishes, and volumetric ware. The SK-401-115V reaches 260°C, sufficient for validated depyrogenation cycles, and natural convection ensures gentle, even heat penetration without disturbing lightweight or open glassware. No residual moisture means instruments are ready to use immediately after the cycle completes.
Metal Instruments & Heat-Stable Supplies
Forceps, scalpels, spatulas, needles, and other metal instruments that cannot tolerate moisture are well-suited for dry heat sterilization. The SK-401-115V's programmable 99-step controller allows validated sterilization protocols to be stored and recalled for consistent, repeatable results — useful for labs running multiple instrument types on different cycle parameters.
Powders, Oils & Moisture-Sensitive Materials
Talc, starch, petroleum jelly, mineral oils, and similar materials degrade under steam sterilization conditions. Dry heat at controlled temperatures is the only validated approach for these substrates. The SK-401-115V's PID control and calibration offset function allow precise cycle conditions to be set and documented, supporting GMP and quality assurance requirements.
Research & Clinical Laboratories
The SK-401-115V is well-suited for smaller research labs, satellite facilities, and clinical settings where a full-size sterilizer isn't needed but validated dry heat performance is still required. Programmable auto start/stop functions support unattended operation, and the compact 99 L footprint fits comfortably in space-constrained lab environments.
