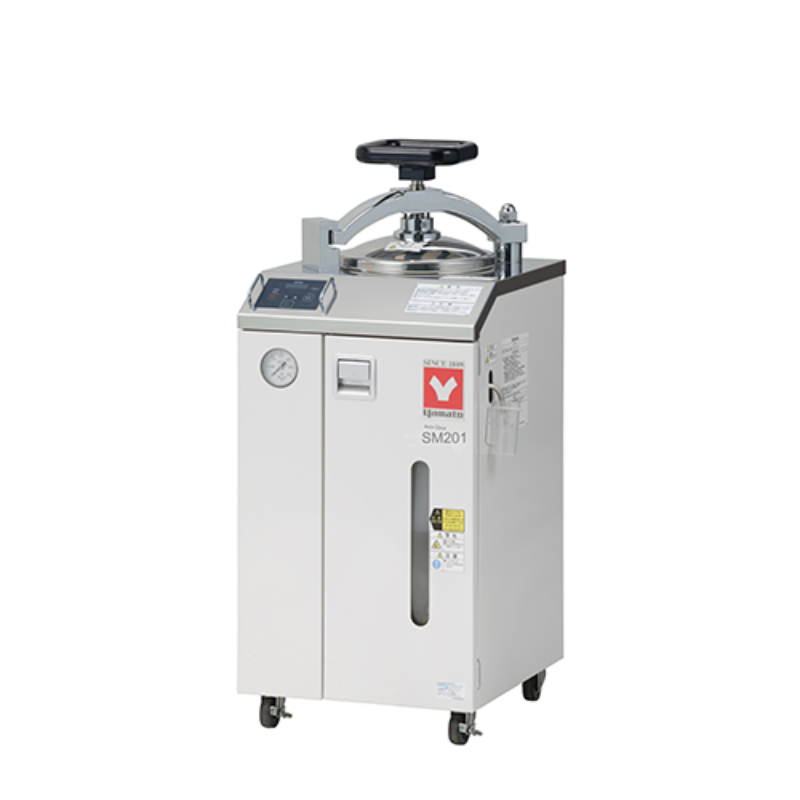

Yamato SM-201 Autoclave Steam Sterilizer with Dryer 20L 115V
Free Shipping · 7 Day Price Match Guarantee · Manufacturer Warranty · Call us (800) 577-0501
Yamato SM-201 Autoclave Steam Sterilizer with Dryer (20L, 115V)
Contact us to confirm current lead times and real-time availability for this model.
Consult our Autoclave Buying Guide to learn about the differences between steam and dry heat sterilization to find the ideal solution for your research.
The Yamato SM-201 Autoclave Steam Sterilizer with Dryer 20 L 115 V is a compact, fully automatic laboratory steam sterilizer that combines high-pressure steam sterilization with integrated drying capability. With a 20 L chamber and intuitive controls, it delivers precise sterilization (105 °C–123 °C) followed by efficient drying (150 °C–180 °C), making it ideal for sterilizing glassware, instruments, and supplies in research and clinical labs.
Key Features:
- Automatic operation: Complete sterilization to drying process with interactive key input system
- Quick sample drying: Samples ready for immediate use after sterilization
- Flexible capacity options: 20L, 32L, and 47L loading capacities
- High temperature capability: Up to 128°C operating temperature for effective sterilization
- Customizable drying: Temperature settings adjustable according to sample material and quantity
- User-friendly interface: Digital display with green LED for responsive, intuitive operation
- Extended timer range: 1-999 hours for versatile applications
Operational Advantages:
- Easy chamber access: No protrusions for quick basket insertion and removal
- Front-panel monitoring: Drain bottle water level indicator for quick confirmation
- Convenient maintenance: Front-located drain valve for easy access
- Enhanced safety: Self-diagnostic functions for safer operation and quicker error recovery
- Safe exhaust: Condensation collector neutralizes high-temperature exhaust steam
✓ Ships directly from Yamato USA in California
✓ Free shipping to the continental US (in stock items typically ship within 3-5 days)
✓ Includes Yamato's full 1-year manufacturer warranty
✓ 7-day price match guarantee from date of purchase
✓ Alaska, Hawaii, and international shipping available - contact us for rates
Ready to elevate your laboratory's heating capabilities with professional-grade precision? Order with confidence today.
Yamato SM-201 Autoclave Steam Sterilizer with Dryer (20L, 115V)
Contact us to confirm current lead times and real-time availability for this model.
Consult our Autoclave Buying Guide to learn about the differences between steam and dry heat sterilization to find the ideal solution for your research.
The Yamato SM-201 Autoclave Steam Sterilizer with Dryer 20 L 115 V is a compact, fully automatic laboratory steam sterilizer that combines high-pressure steam sterilization with integrated drying capability. With a 20 L chamber and intuitive controls, it delivers precise sterilization (105 °C–123 °C) followed by efficient drying (150 °C–180 °C), making it ideal for sterilizing glassware, instruments, and supplies in research and clinical labs.
Key Features:
- Automatic operation: Complete sterilization to drying process with interactive key input system
- Quick sample drying: Samples ready for immediate use after sterilization
- Flexible capacity options: 20L, 32L, and 47L loading capacities
- High temperature capability: Up to 128°C operating temperature for effective sterilization
- Customizable drying: Temperature settings adjustable according to sample material and quantity
- User-friendly interface: Digital display with green LED for responsive, intuitive operation
- Extended timer range: 1-999 hours for versatile applications
Operational Advantages:
- Easy chamber access: No protrusions for quick basket insertion and removal
- Front-panel monitoring: Drain bottle water level indicator for quick confirmation
- Convenient maintenance: Front-located drain valve for easy access
- Enhanced safety: Self-diagnostic functions for safer operation and quicker error recovery
- Safe exhaust: Condensation collector neutralizes high-temperature exhaust steam
✓ Ships directly from Yamato USA in California
✓ Free shipping to the continental US (in stock items typically ship within 3-5 days)
✓ Includes Yamato's full 1-year manufacturer warranty
✓ 7-day price match guarantee from date of purchase
✓ Alaska, Hawaii, and international shipping available - contact us for rates
Ready to elevate your laboratory's heating capabilities with professional-grade precision? Order with confidence today.
Technical Specs
| Model |
SM201 SM211 |
SM301 SM311 |
SM501 SM511 |
|---|---|---|---|
| System | Automatic high pressure steam sterilization | ||
| Operating temperature Sterilization | 105 to 123°C | 105 to 128°C | |
| Operating temperature Drying | 150 to 180°C | ||
| Maximum pressure capacity | 0.18MPa | 0.2MPa | |
| Interior | Stainless steel | ||
| Heater Sterilization | 1.3kW | 1.7kW | 1.7kW (SM501) 2.0kW (SM511) |
| Heater Drying | 1.0kW | 1.5kW | |
| Temp. controller | PID control by microprocessor | ||
| Temp. display | Digital display by green LED and setting via ▲▼ keys | ||
| Timer / Timer resolution | 1 min. ~ 99 hrs. and 59 min. 100~ 999 hrs. / 1 min. or 1 hr. | ||
| Safety Device | Self-diagnostic functions (detection sensor error, SSR short circuit, heater disconnect, faulty main relay, dry operation), safety valve, electric leakage breaker, drain bottle set-fail switch | ||
| Internal dimensions | ⌀240 x D445 mm | ⌀300 x D445 mm | ⌀300 x D665 mm |
| External dimensions WxDxH | 410 x 470 x 957 mm | 440 x 530 x 968 mm | 440 x 530 x 1088 mm |
| Internal capacity | 20L | 32L | 47L |
| Power source (50/60Hz single phase) |
AC115V 13A (with plug) AC220V 7A (no plug, round terminal) |
AC115V 15A (no plug, round terminal) AC220V 9.5A (no plug, round terminal) |
AC115V 15A (no plug, round terminal) AC220V 9.5A (no plug, round terminal) |
| Weight | ~65kg | ~80kg | ~85kg |
| Included accessories | 2 pcs. stainless steel mesh basket (⌀209 x D204 mm) | 2 pcs. stainless steel mesh basket (⌀266 x D204 mm) | 2 pcs. stainless steel mesh basket (⌀266 x D315 mm) |
| Drain board, drain bottle, condensation collection container with magnetic bracket | |||
Applications
Applications & Suitability
The Yamato SM-201 (20L, 115V) combines high-pressure steam sterilization with integrated drying for compact, high-efficiency processing in clinical, research, and educational laboratories:
-
Glassware & Labware: Complete steam sterilization and immediate sample drying for reusable laboratory glassware, instruments, and apparatus.
-
Life Science & Research: Reliable sterilization of liquid culture media, agar preparation, and biological reagents.
-
Biohazardous Waste: Safe, effective decontamination of biological waste and contaminated laboratory supplies prior to disposal.
-
Custom Drying Cycles: Adjustable post-sterilization drying temperatures ensure delicate or moisture-sensitive instruments are ready for immediate reuse.
Downloads
Yamato Sterilizer/Autoclave Accessories
Yamato Lab Sterilizer/Autoclave Buyers Guide
Yamato Sterilizer/Autoclave Overview/Comparison Chart
SM201/211/301/311/501/511 Series Info
