Yamato SQ-810C Autoclave Steam Sterilizer 80L 220V
Free Shipping · 7 Day Price Match Guarantee · Manufacturer Warranty · Call us (800) 577-0501

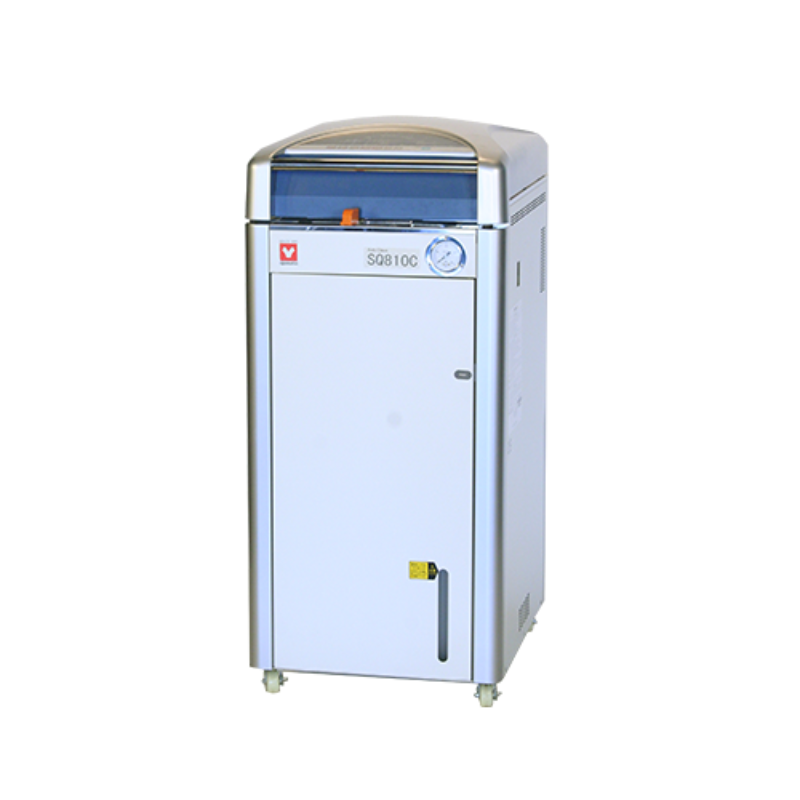

Yamato SQ-810C High-Capacity Top-Loading Autoclave (80L)
Contact us to confirm current lead times and real-time availability for this model.
Consult our Autoclave Buying Guide to learn about the differences between steam and dry heat sterilization to find the ideal solution for your research.
The Yamato SQ-810C Autoclave Steam Sterilizer 80 L 220 V is a high-capacity steam sterilization unit designed for efficient, reliable sterilizing of laboratory glassware, tools, media, and biological waste. With a spacious 80 L chamber, stable performance, and intuitive controls, it delivers thorough sterilization cycles—ideal for research, clinical, industrial, and educational lab environments that require dependable sterilization.
Key Features:
- Ergonomic design: Low height, top-loading configuration reduces strain during container loading
- High temperature capability: Maximum sterilizing temperature up to 135°C - suitable for protein modification
- Advanced cooling: Integrated cooling fan system shortens cool-down time for faster turnaround
- Versatile applications: Handles ordinary sterilization, culture media sterilization/melting, and liquid sterilization
- Custom programming: Save custom programs for repeated use with simple button operation
- Efficient operation: Timer start and pre-heating features maximize time efficiency
- Mobile convenience: Equipped with wheels for easy positioning
Operational Advantages:
- Simple operation: Easy setting and operation for complex sterilization processes
- Time-saving features: Pre-heating and timer start functions optimize workflow
- User-friendly interface: Intuitive controls for comfortable operation
- High capacity: Handle more samples per cycle for increased productivity
Enhanced Safety Features:
- Lid interlock mechanism: Prevents operation with improperly secured lid
- Drain bottle monitoring: Unset alarm prevents operational issues
- Self-diagnostic functions: Automatic malfunction detection and shutdown
- Memory protection: Malfunction detection for program integrity
- Comprehensive safety systems: Multiple layers of protection for safe operation
✓ Ships directly from Yamato USA in California
✓ Free shipping to the continental US (in stock items typically ship within 3-5 days)
✓ Includes Yamato's full 1-year manufacturer warranty
✓ 7-day price match guarantee from date of purchase
✓ Alaska, Hawaii, and international shipping available - contact us for rates
Ready to elevate your laboratory's heating capabilities with professional-grade precision? Order with confidence today.
Yamato SQ-810C High-Capacity Top-Loading Autoclave (80L)
Contact us to confirm current lead times and real-time availability for this model.
Consult our Autoclave Buying Guide to learn about the differences between steam and dry heat sterilization to find the ideal solution for your research.
The Yamato SQ-810C Autoclave Steam Sterilizer 80 L 220 V is a high-capacity steam sterilization unit designed for efficient, reliable sterilizing of laboratory glassware, tools, media, and biological waste. With a spacious 80 L chamber, stable performance, and intuitive controls, it delivers thorough sterilization cycles—ideal for research, clinical, industrial, and educational lab environments that require dependable sterilization.
Key Features:
- Ergonomic design: Low height, top-loading configuration reduces strain during container loading
- High temperature capability: Maximum sterilizing temperature up to 135°C - suitable for protein modification
- Advanced cooling: Integrated cooling fan system shortens cool-down time for faster turnaround
- Versatile applications: Handles ordinary sterilization, culture media sterilization/melting, and liquid sterilization
- Custom programming: Save custom programs for repeated use with simple button operation
- Efficient operation: Timer start and pre-heating features maximize time efficiency
- Mobile convenience: Equipped with wheels for easy positioning
Operational Advantages:
- Simple operation: Easy setting and operation for complex sterilization processes
- Time-saving features: Pre-heating and timer start functions optimize workflow
- User-friendly interface: Intuitive controls for comfortable operation
- High capacity: Handle more samples per cycle for increased productivity
Enhanced Safety Features:
- Lid interlock mechanism: Prevents operation with improperly secured lid
- Drain bottle monitoring: Unset alarm prevents operational issues
- Self-diagnostic functions: Automatic malfunction detection and shutdown
- Memory protection: Malfunction detection for program integrity
- Comprehensive safety systems: Multiple layers of protection for safe operation
✓ Ships directly from Yamato USA in California
✓ Free shipping to the continental US (in stock items typically ship within 3-5 days)
✓ Includes Yamato's full 1-year manufacturer warranty
✓ 7-day price match guarantee from date of purchase
✓ Alaska, Hawaii, and international shipping available - contact us for rates
Ready to elevate your laboratory's heating capabilities with professional-grade precision? Order with confidence today.
Technical Specs
| Model |
SQ500C SQ510C |
SQ810C |
|---|---|---|
| System | Automatic high-pressure steam sterilization | |
| Operating temp. range | 45~135°C | |
| Max. working pressure | 0.255MPa | |
| Ambient temperature | 5~35°C | |
| Lid | Manual upward opening with an interlock for safety | |
| Heater | 1000W x 2 units | |
| Exhaust valve | One exhaust valve and one slow release valve | |
| Connection ports for optional accessories | Total 3 ports. Female thread for sample temp. sensor (1/4" ), Female thread for chamber temp. sensor (1/4" ), Female thread pressure sensor (branching from the solenoid valve tubing) | |
| Cooling fan | Axial fan motor | |
| Temp. controller | PID control by microprocessor | |
| Temp. display / setting | Digital display / digital setting by ▲▼ keys | |
| Timer / Timer resolution | 0 or 1 min. to 99 hrs 59 min. / 1 minute | |
| Operation mode | Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer-programmed course | |
| Other features | Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting | |
| Safety device | Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa) | |
| External dimensions |
520 x 660 x 881 mm WxDxH | 520 x 660 x 1161 mm WxDxH |
| Internal dimensions of chamber | ø370 x D470 mm | ø370 x D750 mm |
| Internal capacity | 50L | 80L |
| Weight | ~95kg | ~105kg |
| Power source | AC100~120V (24.5~20.5A) (no plug, round terminal) AC200~240V (12.5~10.5A) (no plug, round terminal) |
AC200~240V (12.5~10.5A) (no plug, round terminal) |
| Included accessories | 2 pcs. stainless steel mesh basket (ø344xD200mm) | 2 pcs. stainless steel mesh basket (ø344xD300mm) |
| Vapor cup x 1, Drain bottle x 1, Drain board x 1, Chemical indicator 1 set (30 pieces), Filter x 1 | ||
Applications
Applications & Suitability
The Yamato SQ-810C (80L) is engineered for high-capacity sterilization in demanding research, clinical, and industrial environments:
Life Science & Research: High-volume sterilization of liquid culture media, agar preparation, and large batches of laboratory glassware.
Biohazardous Waste: Safe, reliable inactivation and sterilization of biological waste and contaminated laboratory supplies prior to disposal.
Equipment & Apparatus: Complete steam sterilization of non-porous tools, stainless steel instruments, and heavy lab apparatus.
Media Prep & Melting: Built-in liquid sterilization and keep-warm/melting modes ensure precise temperature management for sensitive media.
Downloads
Yamato SQ Series Large Capacity Sterilizer/Autoclave without Dryer Info
Yamato Sterilizer/Autoclave Accessories
Yamato Return Notes
- Yamato Parts: 15-day return limit from date of shipment
- Yamato Equipment Returns: Approved on a case-by-case basis - please contact us to discuss your specific situation
- For all return inquiries, please contact our customer service team
