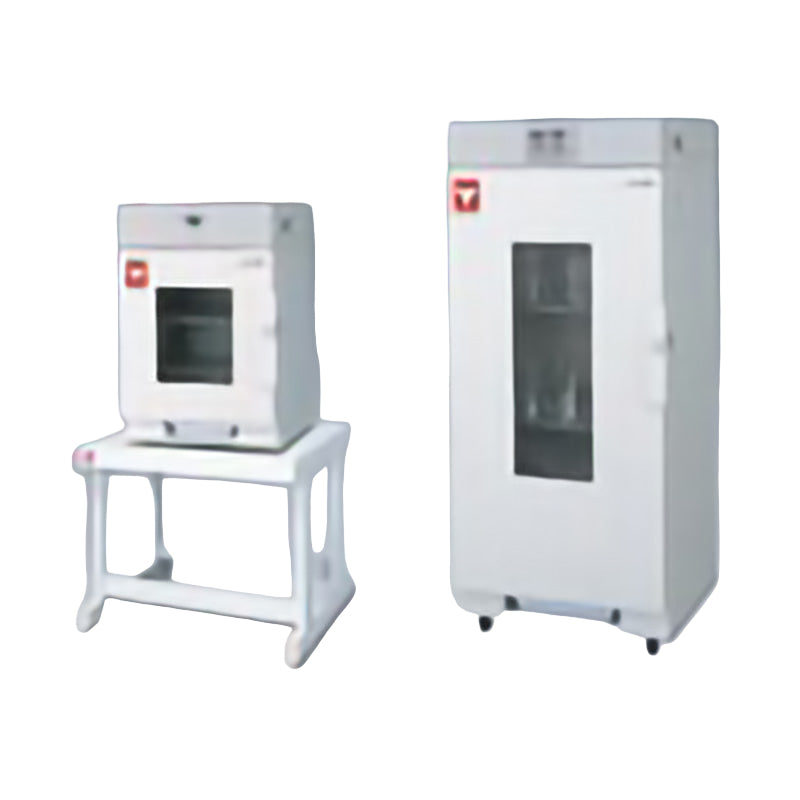

Yamato DG Series Glassware Drying Natural Convection Lab Oven

Yamato DG Series Glassware Drying Natural Convection Lab Oven

by Lab Stock Direct
$3,175.00
Model, Size and Voltage

Notify me when back in stock

Description

Natural convection lab oven for glassware drying.

Operation and functions

Large window for easy observation

Can be used to store instruments after drying

Highly efficient heat insulation material for both internal and external structure

Adjustable foot for stability on uneven floors

Mobile on casters (DG800C/810C/840C/850C)

Equipped with stainless steel pipe heater and water receiving plate at the bottom

Stainless steel interior, easy to clean and highly resistant to corrosion

DG440C/450C/840C/850C installed with filter at air in-take port, exhaust fan and germicidal lamp for fast drying

Dial setting and digital display of temperature control and timer


Safety features

Self-diagnostic functions, calibration offset, independent overheat prevention, over current leakage breaker, key lock and auto recovery after power failure.

(Note: Accurate temperature control may not be possible with heat generating samples in the chamber)

Your choice of laboratory oven can have a big effect on your daily lab routines. Download Yamato’s Complete Guide To Buying The Perfect Lab Oven guide and discover how your everyday applications and facility requirements factor into choosing an oven that can provide the best results for your sample.

Additional Shelves and Brackets can be purchased for the DG Series. Click here to view Our Yamato Lab Oven Accessories Page.

Technical Specs

MODEL DG400C
DG410C		 DG440C
DG450C		 DG800C
DG810C		 DG840C
DG850C
System Natural convection Natural / Forced convection
Operating Temp. Range RT+5~70°C
Interior Material Stainless steel
Temp. Setting Method Digital setting by ▲/▼ keys
Heater SUS pipe heater 1.0kW SUS pipe heater 1.34kW
Temp. Controller PID control with microprocessor
Operation Functions Fixed temperature, auto stop, auto start, quick auto stop
Sensor Temp. controller: K thermocouple, Overheat protection: Liquid-expansion temp. controller
Exhaust Port I.D. 34mm × 2 Axial flow fan forced exhaust I.D. 34mm × 2 Axial flow fan forced exhaust
Suction Port I.D. 30mm × 2 Set air suction filter I.D. 30mm × 2 Set air suction filter
Germicidal Lamp -- 8W×1 15W×1
Internal Dimensions WxDxH 450×450×450 mm 620×600×1195 mm
External Dimensions WxDxH 504×562×788 mm 504×562×820 mm 674×711×1586 mm 674×711×1618 mm
Internal Capacity 92L 445L
Weight ~45kg ~48kg ~78kg ~83kg
Door Single door, silicon rubber packing
Observation Window Standard glass 3mm W250 x H300mm Standard glass 3mm W250 x H700mm
Shelf Plate Load 15kg/pc.
Shelf Rest / Pitch 10 steps / 30mm 29 steps / 30mm
Power Source AC115V (with plug)
AC220V (no plug, round terminal)
Included Accessories Shelf plate and brackets, water receiving plate
Shelf Plate / Bracket 2pcs. / 4pcs. 4pcs. / 8pcs.
Water Receiving Plate 1pc.



Downloads

Yamato DG Series Glassware Drying Lab Oven Info

Yamato Lab Oven Overview/Comparison Chart

Yamato Lab Oven Buyers Guide

Yamato Lab Oven Accessories
