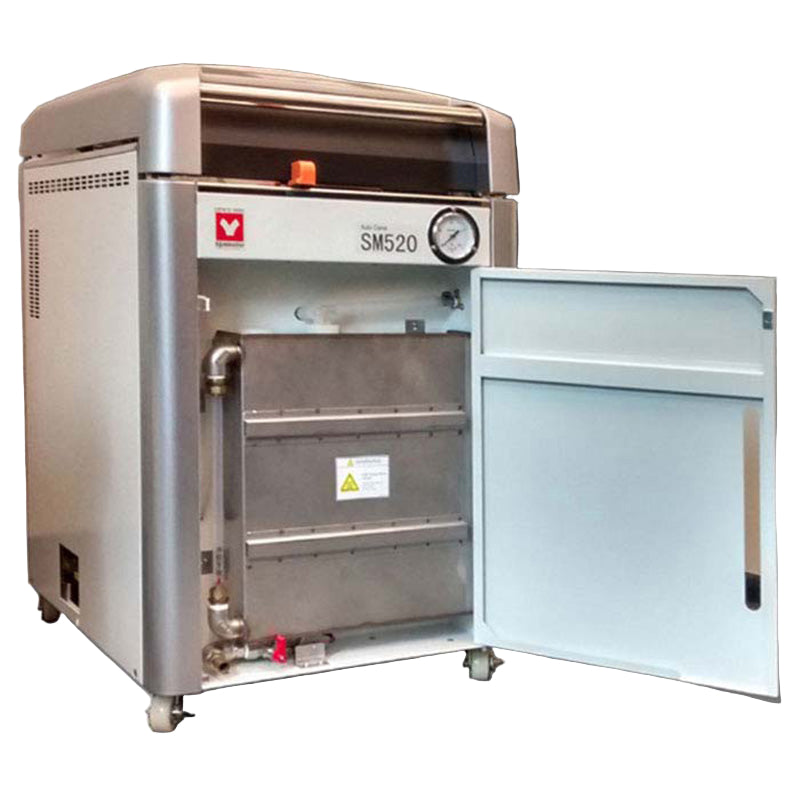

Yamato SM Series Autoclave Steam Sterilizer - SM-520/530/820/830
Free Shipping · 7 Day Price Match Guarantee · Manufacturer Warranty · Call us (800) 577-0501
The Yamato SM Series autoclave steam sterilizer is available in two capacity sizes: SM-520/530 (50L) and SM-820/830 (80L)—each offered in 100V-120V or 200V-240V configurations. Designed for high-volume laboratory operations in research facilities, hospitals, and pharmaceutical labs, these large capacity steam sterilizers feature integrated drying technology, 7-inch touchscreen controls, and operate at temperatures up to 135°C—ideal for efficient sterilization cycles with complete drying for immediate use of sterilized materials.
Key Features:
- Large capacity options: 50L and 80L models for high-volume sterilization
- High temperature capability: Maximum operating temperature up to 135°C - suitable for protein modification

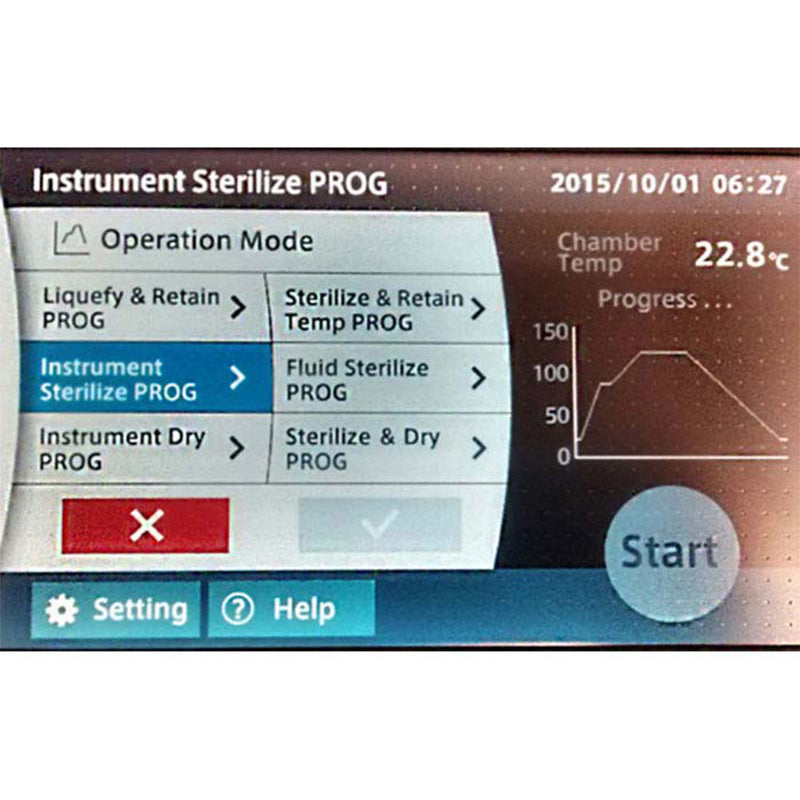

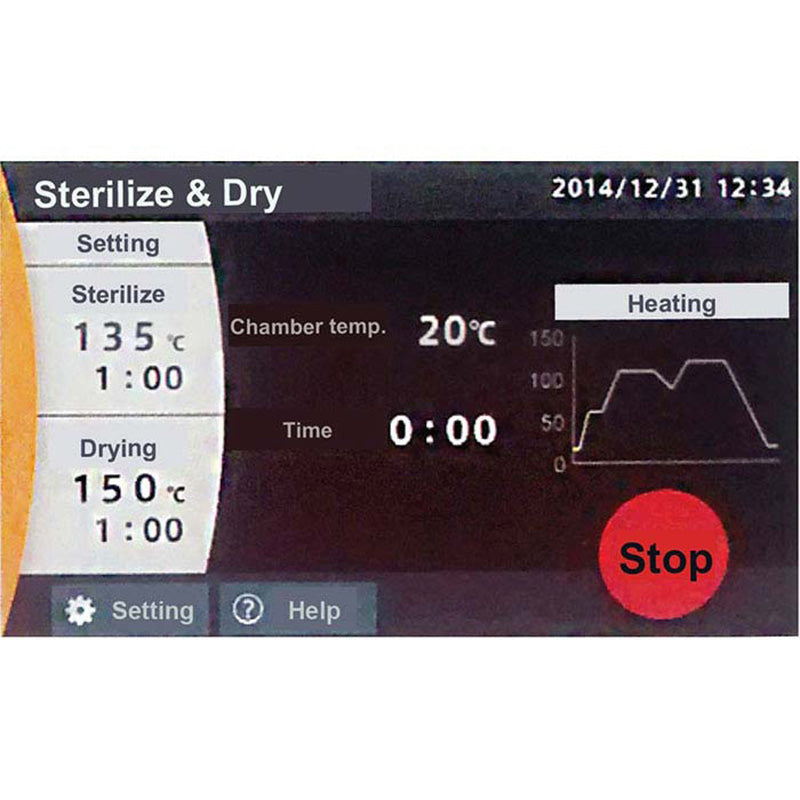

- 7-inch interactive touch screen: Immersive display with clear program information for easy control
- Interactive keypad input: Touch panel allows sterilization settings (time and temperature) to be committed to memory
- Versatile operation modes: Easy settings for multiple sterilization processes
- Enhanced safety features: Multiple safety locking mechanisms, forced cooling, memory functions, and alarm buzzer for pressure errors
- Includes: Large capacity (11L) heat-resistant stainless steel container
Safety & Performance:
- Multiple safety locking mechanisms
- Forced cooling capability
- Memory functions for repeated processes
- Audio alarms for high/low pressure errors
✓ Ships directly from Yamato USA in California
✓ Free shipping to the continental US (in stock items typically ship within 3-5 days)
✓ Includes Yamato's full 1-year manufacturer warranty
✓ 7-day price match guarantee from date of purchase
✓ Alaska, Hawaii, and international shipping available - contact us for rates
Ready to elevate your laboratory's heating capabilities with professional-grade precision? Order with confidence today.
The Yamato SM Series autoclave steam sterilizer is available in two capacity sizes: SM-520/530 (50L) and SM-820/830 (80L)—each offered in 100V-120V or 200V-240V configurations. Designed for high-volume laboratory operations in research facilities, hospitals, and pharmaceutical labs, these large capacity steam sterilizers feature integrated drying technology, 7-inch touchscreen controls, and operate at temperatures up to 135°C—ideal for efficient sterilization cycles with complete drying for immediate use of sterilized materials.
Key Features:
- Large capacity options: 50L and 80L models for high-volume sterilization
- High temperature capability: Maximum operating temperature up to 135°C - suitable for protein modification
- 7-inch interactive touch screen: Immersive display with clear program information for easy control
- Interactive keypad input: Touch panel allows sterilization settings (time and temperature) to be committed to memory
- Versatile operation modes: Easy settings for multiple sterilization processes
- Enhanced safety features: Multiple safety locking mechanisms, forced cooling, memory functions, and alarm buzzer for pressure errors
- Includes: Large capacity (11L) heat-resistant stainless steel container
Safety & Performance:
- Multiple safety locking mechanisms
- Forced cooling capability
- Memory functions for repeated processes
- Audio alarms for high/low pressure errors
✓ Ships directly from Yamato USA in California
✓ Free shipping to the continental US (in stock items typically ship within 3-5 days)
✓ Includes Yamato's full 1-year manufacturer warranty
✓ 7-day price match guarantee from date of purchase
✓ Alaska, Hawaii, and international shipping available - contact us for rates
Ready to elevate your laboratory's heating capabilities with professional-grade precision? Order with confidence today.
Technical Specs
| Model | SM520 | SM530 | SM820 | SM830 | |
|---|---|---|---|---|---|
| System | Automatic high pressure steam sterilization | ||||
| Operating temperature | Sterilize | 105 to 135°C | |||
| Liquefy | 60 to 110°C | ||||
| Retain | 45 to 60°C | ||||
| Preheat | 45 to 80°C | ||||
| Dry | 135 to 150°C | ||||
| Operating Ambient Temp. | 5 to 35°C | ||||
| Maximum pressure capacity | 0.255MPa | ||||
| Heating | Sterilize Pipe | 1000W ×2 | |||
| Drying Pipe | 110V/295W×2, 110V/455W×2 | 110V/295W×2, 110V/455W×2 | 110V/275W ×2, 110V/625W ×2 |
110V/275W ×2, 110V/625W ×2 |
|
| Temp. controller | PlD controlled by microprocessor | ||||
| Temp. setting / display | Touch panel | ||||
| Timer / Timer resolution | Range: 0 or 1min to 99h59min / 1 min. | ||||
| Safety Device | Sterilize sensor error, sterilize SSR short circuit, dry sensor error, dry SSR short circuit, sterilize heater disconnection, dry heater disconnection, water level detection (liquid expansion method), independent chamber overheat protection, cover unlock error, chamber over pressure protection, under pressure protection, warning about setting error in cooling water container, memory error, pressure switch (0.25MPa), pressure safety valve (0.255MPa) | ||||
| Internal dimensions | ⌀370 x D470 mm | ⌀370 x D470 mm | ⌀370 x D750 mm | ⌀370 x D750 mm | |
| External dimensions WxDxH | 520 x 660 x 881 mm | 520 x 660 x 881 mm | 520 x 660 x 1161 mm | 520 x 660 x 1161 mm | |
| Internal capacity | 50L | 50L | 80L | 80L | |
| Power source (50/60Hz) | Voltage | AC100-120V (no plug, round terminal) | AC200-240V (no plug, round terminal) | AC100-120V (no plug, round terminal) | AC200-240V (no plug, round terminal) |
| Sterilize current | 25-21A | 12.5-10.5A | 25-21A | 12.5-10.5A | |
| Dry current | 13.5A | 8.0A | 15.0A | 9.0A | |
| Weight | ~113kg | ~113kg | ~137kg | ~137kg | |
| Included accessories | 2 pcs. stainless steel mesh basket (⌀344 x D200 mm) |
2 pcs. stainless steel mesh basket (⌀344 x D300 mm) | |||
| Drain board x 1, drain bottle x 1, chemical indicator 1 set, filter x 1, droplet tray x 1 | |||||
Applications
Steam Sterilizers
Steam sterilization is the most widely used and most dependable method in industries, from pharmaceutical to food production. It is inexpensive, non-toxic, and highly effective in killing microorganisms and fungal spores. Furthermore, steam can penetrate fabrics easily. Our steam sterilizers can help you disinfect lab, medical, or dental equipment.
Steam Sterilizable Respiratory Therapy Equipment
Sterilizers used in hospitals are highly important as these keep the risk for contamination at bay especially respiratory therapy equipment, which are considered as semi-critical items because of their frequent contact with non-intact skin and mucous membranes. Therefore, these should be cleaned and disinfected.
While chemical germicides such as stabilized 6% hydrogen peroxide and 2% glutaraldehyde-based formulations are essential in disinfecting equipment, physical methods of disinfection like pasteurization and steam sterilization are ideal for disinfecting equipment.
Yamato’s Lab Steam Sterilizers & Autoclaves are not only compact and space-saving, but they are also great for disinfecting tubing of mechanical ventilators for example.
Small Medical Instruments
It is also crucial to keep small instruments such as syringes, needles, cannulas, and even forceps as sterile as possible. With the use of autoclaves, you can effectively ensure the destruction of all microorganisms through the application of heat and pressure on equipment. However, you must make sure that these are non-plastic as temperatures could potentially reach up to 135 °C.
Dental Instruments
Reusable dental instruments including those for cleaning, disinfecting, rinsing, drying, inspecting, wrapping, and sterilizing should be decontaminated as these are exposed to biological fluids like saliva and blood, which may potentially pose a health risk for the next subsequent patient when left unsterile.
That is why steam sterilizers are highly recommended because these are efficient, cost-effective, and incredibly safe for sterilizing instruments in primary care dental practices. Accordingly, instruments should be exposed to temperatures between 134 °C-137 °C and a 2.1-2.25 bar gauge pressure for a holding time of 3 minutes to ensure effectiveness.
Lab research equipment
Yamato steam sterilizers are suitable for lab applications in many industries such as pharmaceutical, life science, food safety, and water based lubricant and coolant industries. For these research laboratories, Yamato autoclaves can disinfect liquid samples as well as solid apparatus. With liquid samples, effective sterilization depends on achieving specific temperature, which requires variation on sterilization time. As an alternative, Yamato offers an optional sample temperature sensor inserted into the samples to ensure required temperature is reached eliminating sterilization time adjustment. This option is available for SN and SQ Series as well as SM Series Large Capacity Steam Sterilizers.
Yamato dry sterilizers are suitable for research as these are durable and non-corrosive. Therefore, you can sterilize samples without damaging moisture-sensitive materials including fat, oils, and powders. Furthermore, dry heat sterilizers like the Natural Convection Dry Sterilizers by Yamato are guaranteed toxic-free.
Downloads
Yamato Sterilizer/Autoclave Accessories
Yamato Lab Sterilizer/Autoclave Buyers Guide
Yamato Sterilizer/Autoclave Overview/Comparison Chart
Yamato SM Series Large Capacity Autoclave/Steam Sterilizer Info
